Overview
The NX-1700 and NX-1800 bring NX-3000-style features to an affordable vehicle radio. They speak NXDN or DMR digital and FM analog, so they work alongside the portables you already have, and they can be upgraded from analog to digital by software license, with no new hardware. The loud 6-watt speaker cuts through road and engine noise, and the front panel shows channel names and status clearly.
Key features
- Multi-protocol: NXDN digital, DMR digital and FM analog, with mixed operation
- 50 W / 25 W / 5 W selectable transmit power
- Up to 260 channels and 128 zones

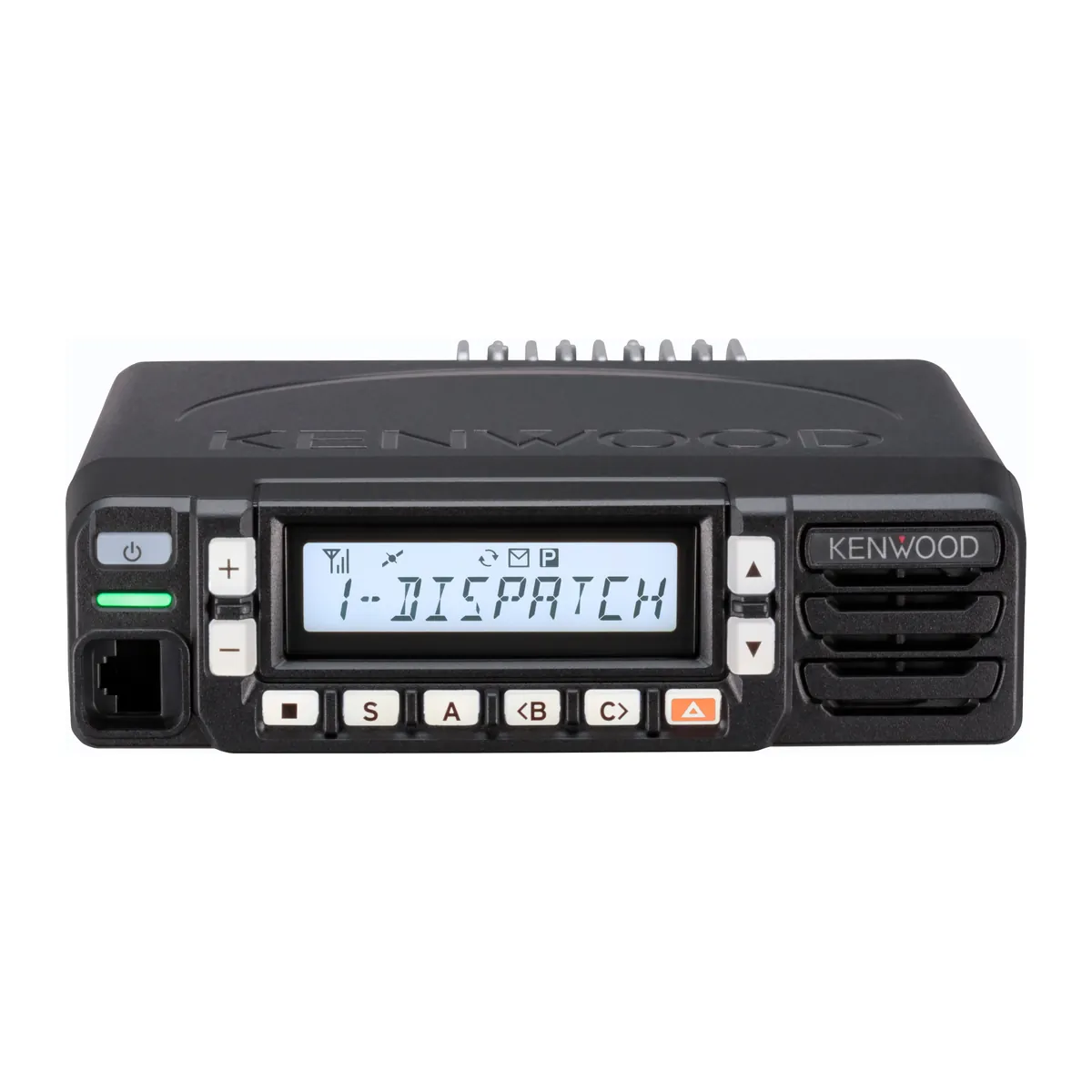

- White-backlit LCD with 13-character channel names and a 7-color status LED
- 6 W of audio with an adjustable equalizer and automatic gain control
- Digital features available by software license, so you can buy analog today and upgrade later
- Built to MIL-STD-810 C through G and IP54 dust and water protection

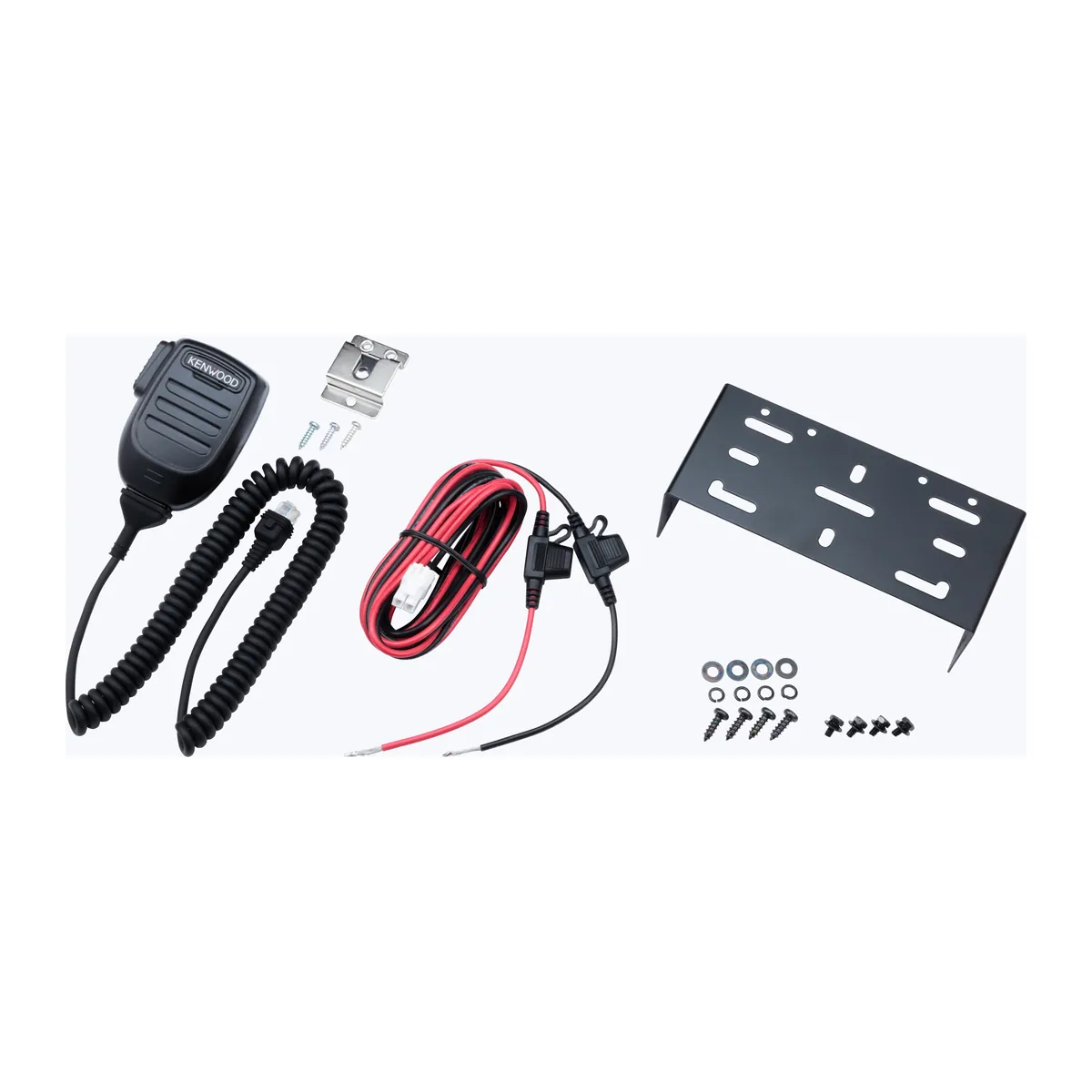

- Supplied with microphone, DC power cable and mounting bracket
Several protocols and features — such as trunking, encryption and extra channel capacity — are optional software licenses. We configure each radio for your system and include the right licenses in your quote.
Models
| Model | Band | Frequency range |
|---|---|---|
| NX-1700 | VHF | 136–174 MHz |
| NX-1800 | UHF | 400–470 MHz |
Specifications
| Specification | NX-1700 / NX-1800 |
|---|---|
| RF power | 50 W / 25 W / 5 W |
| Channels / zones | 260 / 128 |
| Audio output | 6 W (internal speaker 4 W) |
| Power supply | 13.6 V DC |
| Size (W x H x D) | 6.34 x 1.69 x 6.62 in |
| Weight | 2.67 lb |
| Operating temperature | -22 °F to +140 °F |
| Environmental | IP54, MIL-STD-810 C/D/E/F/G |
Downloads
Pricing and availability: call 901-767-6800 or use the quote form on this page. We program, install and support every radio we sell from our Memphis shop.
