Overview
The NX-3000 series is built for operations where the radio has to work every time: utilities, transit, campuses and public safety support. These radios run NXDN and DMR digital, including trunked systems, plus FM analog, and add built-in GPS for tracking, Bluetooth for wireless headsets, active noise reduction and an optional man-down sensor. The NX-3200/3300/3400 use Kenwood’s rugged 14-pin universal connector for heavy-duty accessories.
Key features
- NXDN Conventional, Type-C and Gen2 trunking; DMR Tier 2, Tier 3 trunking and site roaming; FM analog

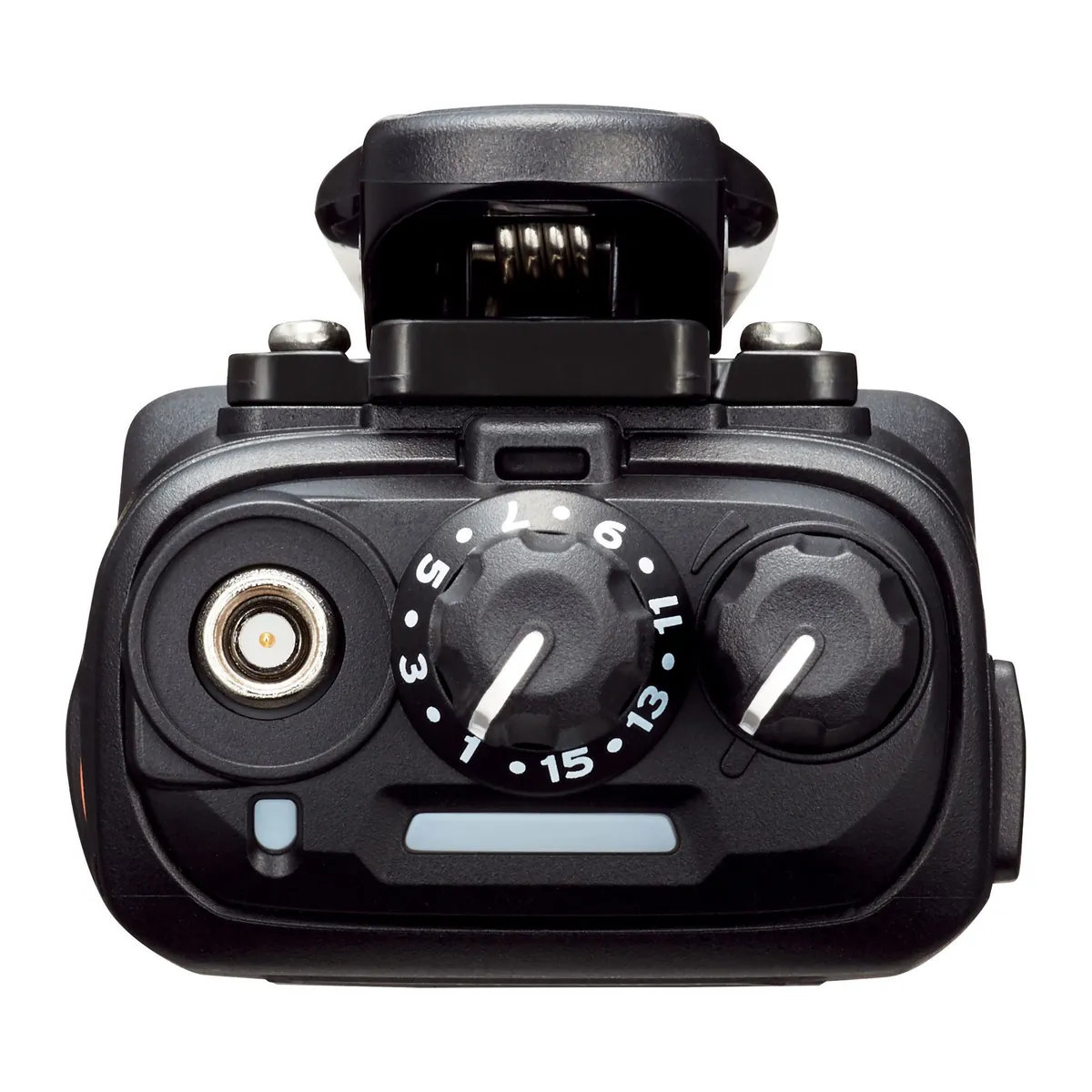

- 14-pin universal accessory connector for heavy-duty accessories
- Built-in GPS receiver for fleet and incident tracking
- Built-in Bluetooth for wireless headsets and data
- Active noise reduction for clear audio in loud places
- Motion sensor for man-down, stationary and motion alerts

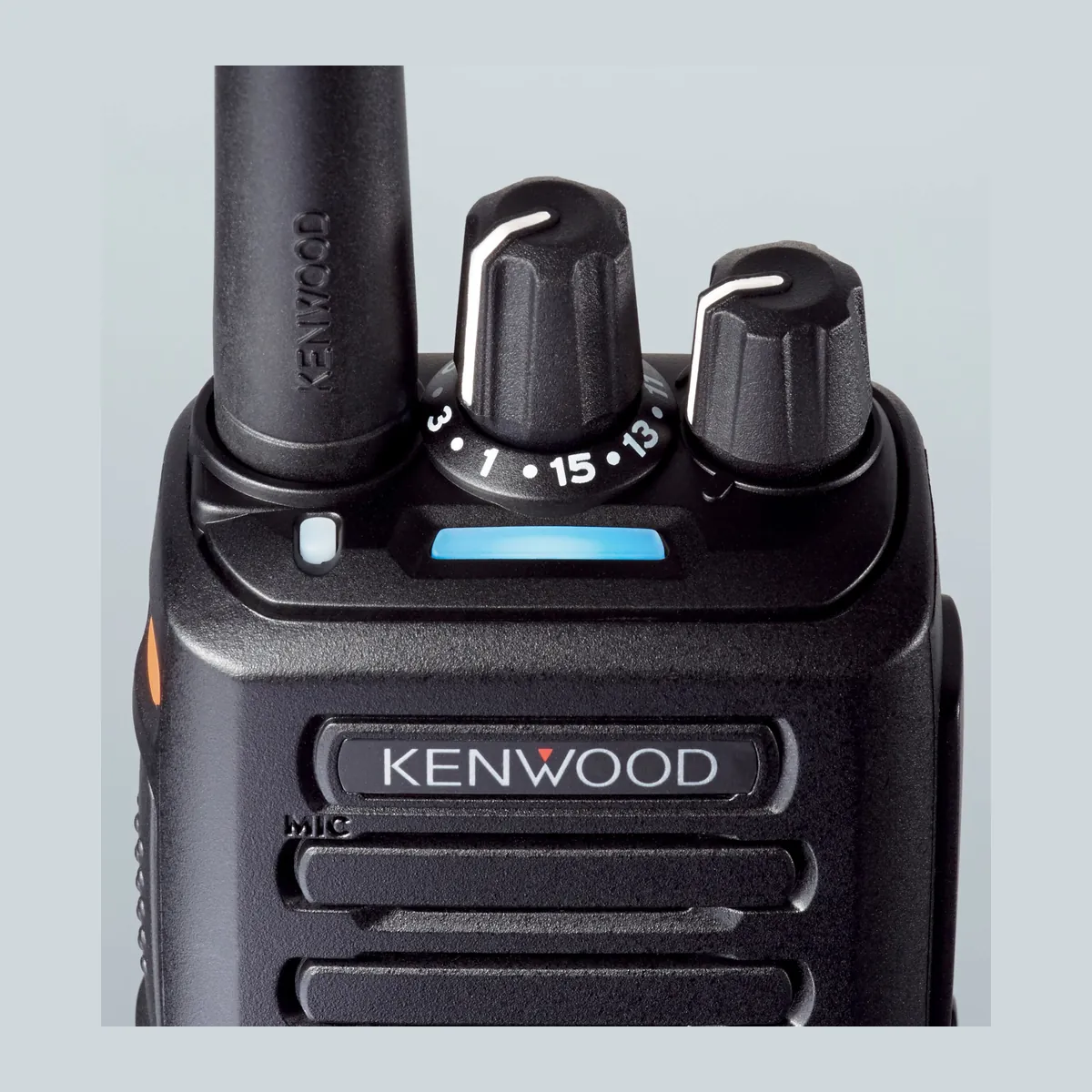

- 7-color light bar on top, set per channel
- Optional AES and DES encryption; intrinsically safe version available
- 512 channels and 128 zones (up to 1,000 channels with option)
- IP54/55/67 and MIL-STD-810 C through G
Several protocols and features — such as trunking, encryption and extra channel capacity — are optional software licenses. We configure each radio for your system and include the right licenses in your quote.
Models and versions
| Model | Band | Frequency range |
|---|---|---|
| NX-3200 | VHF | 136–174 MHz |
| NX-3300 | UHF | 400–520 MHz |
| NX-3400 | 700/800 MHz | 806–870 MHz and 896–941 MHz |
| Version | What you get |
|---|---|

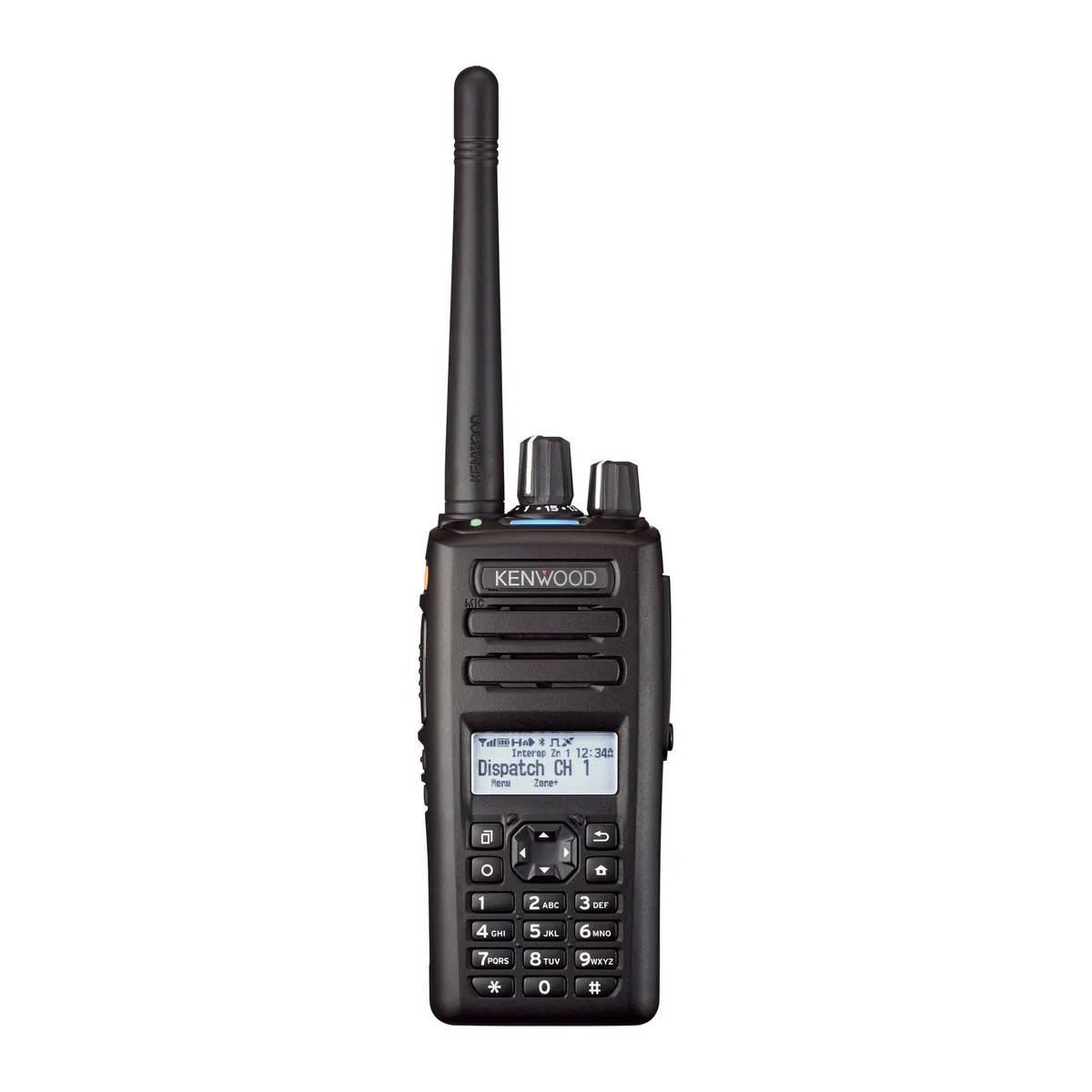

| Full keypad | Display with full keypad |
| Standard keypad | Display with large 4-way D-pad and 4 keys |
| Basic | No display or keypad (64 channels / 4 zones) |
Specifications
| Specification | NX-3200 / NX-3300 / NX-3400 |
|---|---|
| RF power (VHF/UHF) | 5 W / 4 W / 1 W |
| Channels / zones | 512 / 128 (up to 1,000 channels with option; basic 64 / 4) |
| Audio output | 1 W |
| Battery life | Up to about 25 h (DMR) with KNB-78L 2860 mAh |
| Size (W x H x D) | 2.20 x 4.71 x 1.43 in (radio only) |
| Weight | 7.8 oz radio only; about 12 oz with KNB-57L |
| Operating temperature | -22 °F to +140 °F |
| Environmental | IP54/55/67, MIL-STD-810 C/D/E/F/G |
Downloads
Pricing and availability: call 901-767-6800 or use the quote form on this page. We program, install and support every radio we sell from our Memphis shop.
