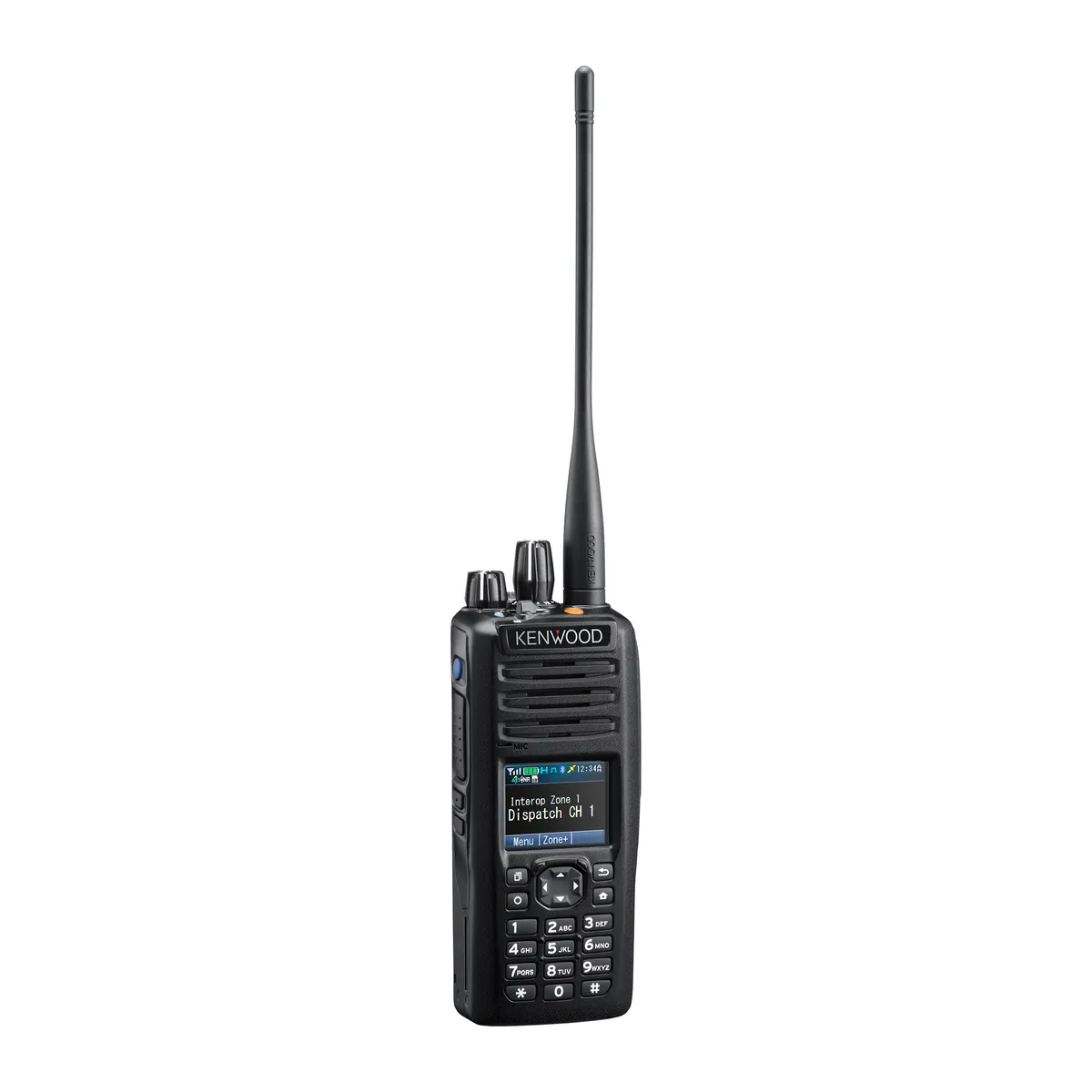

Overview
The NX-5000 portables are built for agencies and enterprises that have to talk across systems. One radio can carry P25 (Phase 1 and 2), NXDN and DMR (Tier 2 and 3), running any two digital protocols plus FM analog at the same time, so a single radio can work on a county P25 system and a local NXDN or DMR system. A bright color display, glove-friendly D-pad, dual-microphone noise reduction and IP67/68 waterproofing make them at home on a fireground or a plant floor.
Key features
- Multi-protocol: P25 Phase 1 & 2, NXDN (conventional, Type-C, Gen2) and DMR (Tier 2, Tier 3), plus FM analog
- Any two digital protocols plus analog in the same radio (FM/DMR/NXDN, FM/NXDN/P25 or FM/DMR/P25)
- 1.74-inch color display readable in direct sunlight, even with polarized sunglasses
- 4-way D-pad and 2-position lever switch, usable with gloves
- Built-in GPS receiver and Bluetooth
- Active noise reduction with two microphones
- Built-in DES encryption; AES-256 available
- Motion sensor for man-down alerts; microSD slot for voice and data
- Up to 1,024 channels in 128 zones (4,000 channels with option)
- IP67/68 waterproof and MIL-STD-810 C through G
Several protocols and features — such as trunking, encryption and extra channel capacity — are optional software licenses. We configure each radio for your system and include the right licenses in your quote.
Models and versions
| Model | Band | Frequency range | Power |
|---|---|---|---|
| NX-5200 | VHF | 136–174 MHz | 6 W |
| NX-5300 | UHF | 450–520 MHz or 380–470 MHz | 5 W |
| NX-5400 | 700/800 MHz | 763–870 MHz | 3 W |
| Version | What you get |
|---|---|
| Full keypad | Color display with numeric keypad |
| Standard | Color display without numeric keypad |
Specifications
| Specification | NX-5200 / NX-5300 / NX-5400 |
|---|---|
| RF power | 6 W VHF / 5 W UHF / 3 W 700–800 MHz |
| Channels / zones | 1,024 / 128 (up to 4,000 channels with option) |
| Display | 1.74-inch color TFT (240 x 180) |
| Audio output | 1 W |
| Battery life | About 17 h (5-5-90) with KNB-L3 3400 mAh |
| Operating temperature | -22 °F to +140 °F |
| Environmental | IP67/68, MIL-STD-810 C/D/E/F/G |
Downloads
Pricing and availability: call 901-767-6800 or use the quote form on this page. We program, install and support every radio we sell from our Memphis shop.
