Overview

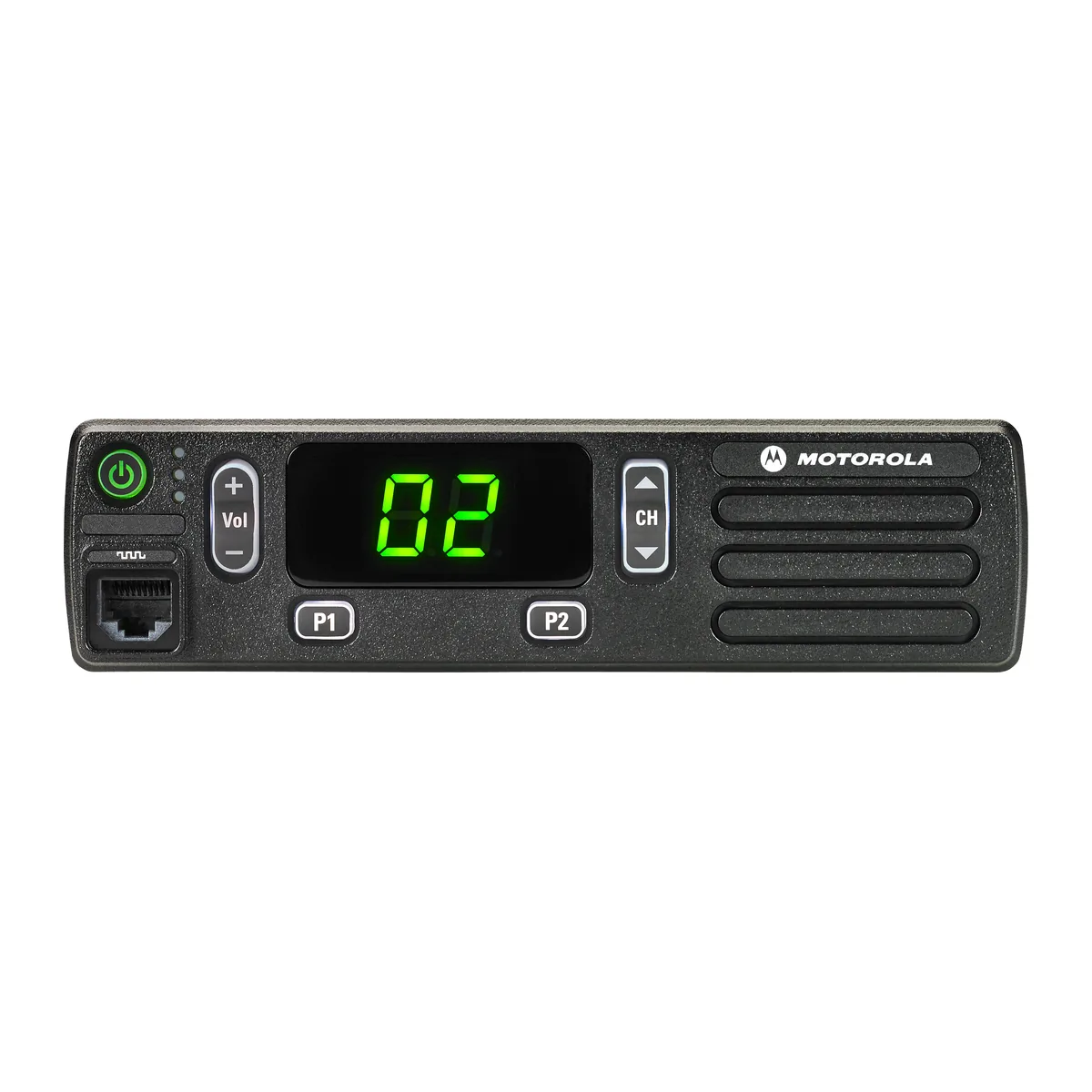

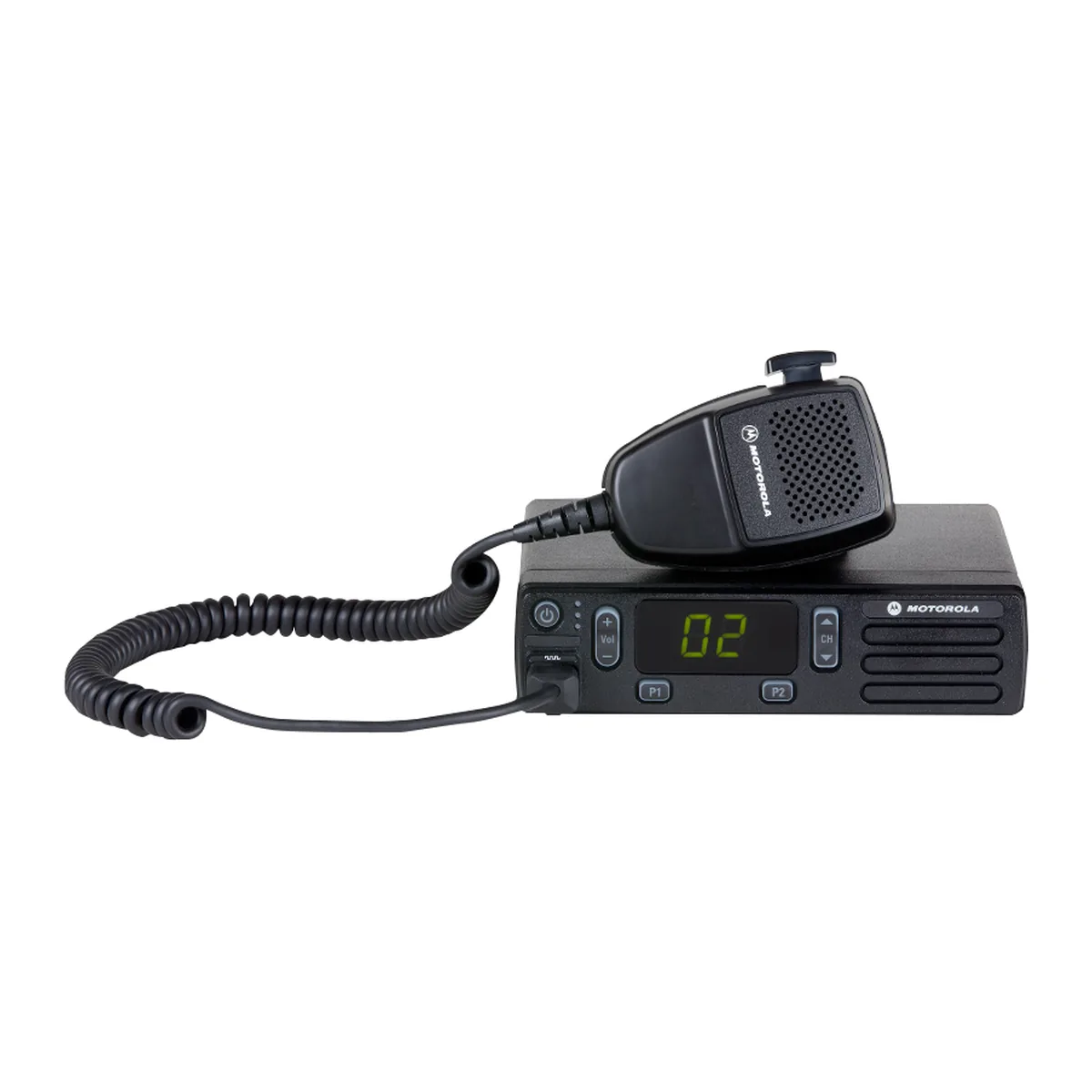

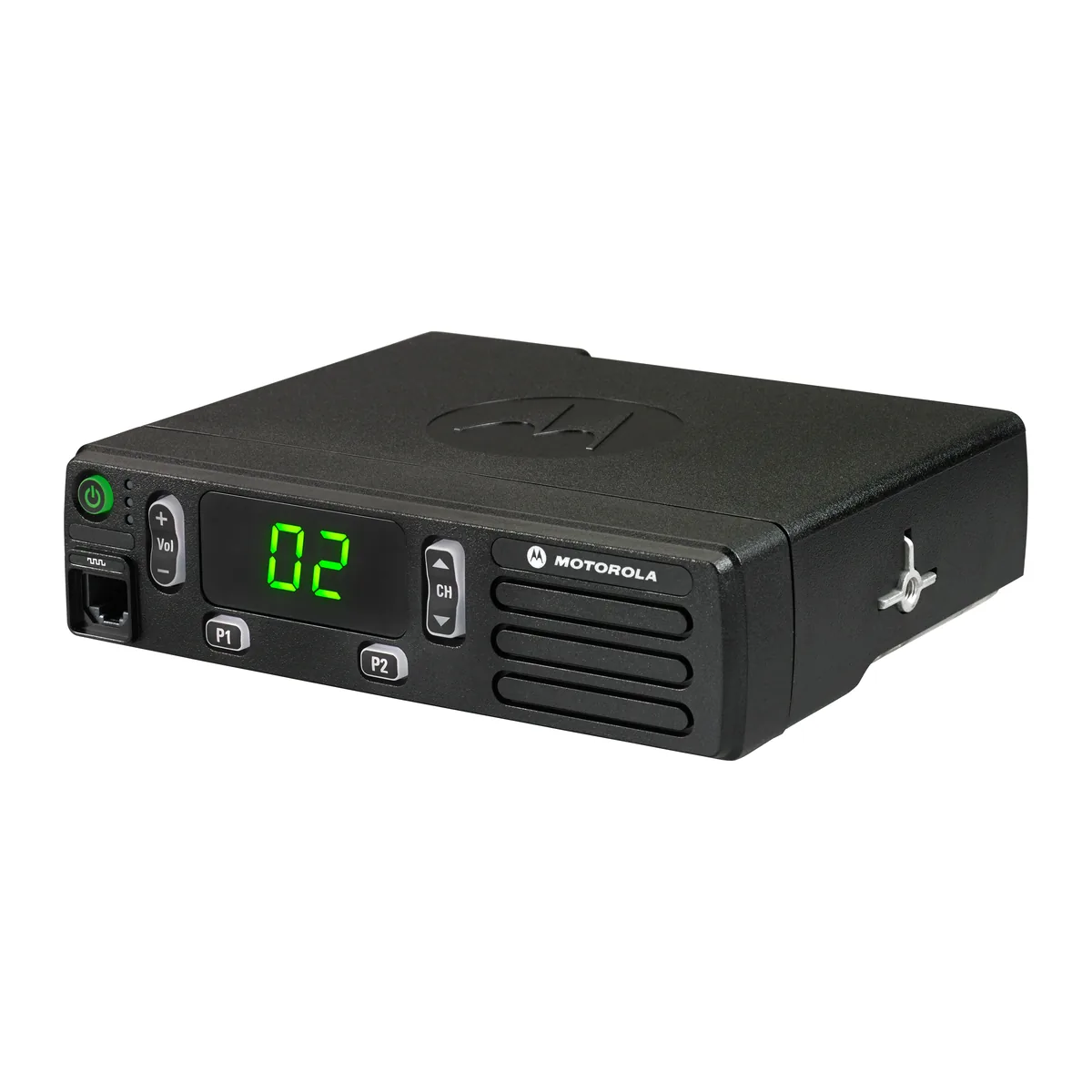

The MOTOTRBO™ CM200d is Motorola Solutions’ affordable, rugged vehicle radio for delivery fleets, school buses, utilities, construction and service trucks. It keeps things simple: 16 channels, a clear numeric channel display and two programmable buttons, with a loud speaker that cuts through road noise. It runs analog and digital, so it fits right into the system you have now and moves to digital when you are ready.
Key features
- 16 channels with a large numeric channel display
- Analog and digital (DMR); analog-only models can be upgraded to digital later with software
- Up to 45 W VHF / 40 W UHF transmit power
- 4 W internal speaker, up to 13 W with an external speaker
- Dual Capacity Direct Mode for two conversations on one frequency without a repeater
- 2 programmable buttons for one-touch calls or alerts
- Transmit interrupt (decode), basic privacy and voice announcement
- IP54 and MIL-STD-810 C through G; put through Motorola’s Accelerated Life Test
Some MOTOTRBO features are optional software licenses, including the analog-to-digital upgrade. We program each radio for your system and include the right options in your quote.
Need it in a vehicle? Our vehicle upfitting team installs mobile radios, control heads, antennas and power wiring in trucks, patrol cars and fire apparatus.
Models
| Model | Band | Frequency range | Power |
|---|---|---|---|
| CM200d VHF low power | VHF | 136–174 MHz | 1–25 W |
| CM200d VHF high power | VHF | 136–174 MHz | 25–45 W |
| CM200d UHF low power | UHF | 403–470 MHz | 1–25 W |
| CM200d UHF high power | UHF | 403–470 MHz | 25–40 W |
Specifications
| Specification | MOTOTRBO CM200d |
|---|---|
| Channels | 16 |
| Display | Numeric (channel number) |
| Modes | Analog and digital DMR (analog-only version upgradable) |
| Audio output | 4 W internal; 7.5 W (8 ohm) or 13 W (4 ohm) external |
| Size (H x W x D) | 1.7 x 6.7 x 5.3 in |
| Weight | 2.9 lb |
| Operating temperature | -22 °F to +140 °F |
| Environmental | IP54, MIL-STD-810 C/D/E/F/G |
Good to know
What is the difference between the CM200d and CM300d?
They are the same radio inside. The CM200d has 16 channels and a simple numeric display, which is all most drivers need. The CM300d adds 99 channels and an alphanumeric display that shows channel names and caller ID.
Will it work with my analog radios?
Yes. The CM200d runs analog and digital, so it talks with the analog portables and mobiles you already have while you move to digital at your own pace.
Can you install it in my vehicles?
Yes. Our upfitting shop installs the radio, antenna, power wiring and microphone, and can add accessories such as an external speaker or visor microphone.
Can my drivers use it while driving?
Motorola notes that MOTOTRBO two-way radios are not restricted by the U.S. DOT rules that limit hand-held mobile phone use by commercial drivers. Check your own company and local rules too.
Do I need a license?
Business radios like the CM200d use FCC-licensed frequencies. We can program the radios for the license you already have, or talk you through getting one.
