Overview
The MOTOTRBO™ CP100d is Motorola Solutions’ affordable, easy-to-use digital radio for hotels, event venues, golf courses, light manufacturing and other everyday business teams. It runs analog and digital, so it works alongside the analog radios you have today and lets you move to digital at your own pace. Choose a simple 16-channel radio with no display, or a 160-channel model with a display and a limited or full keypad.
Key features

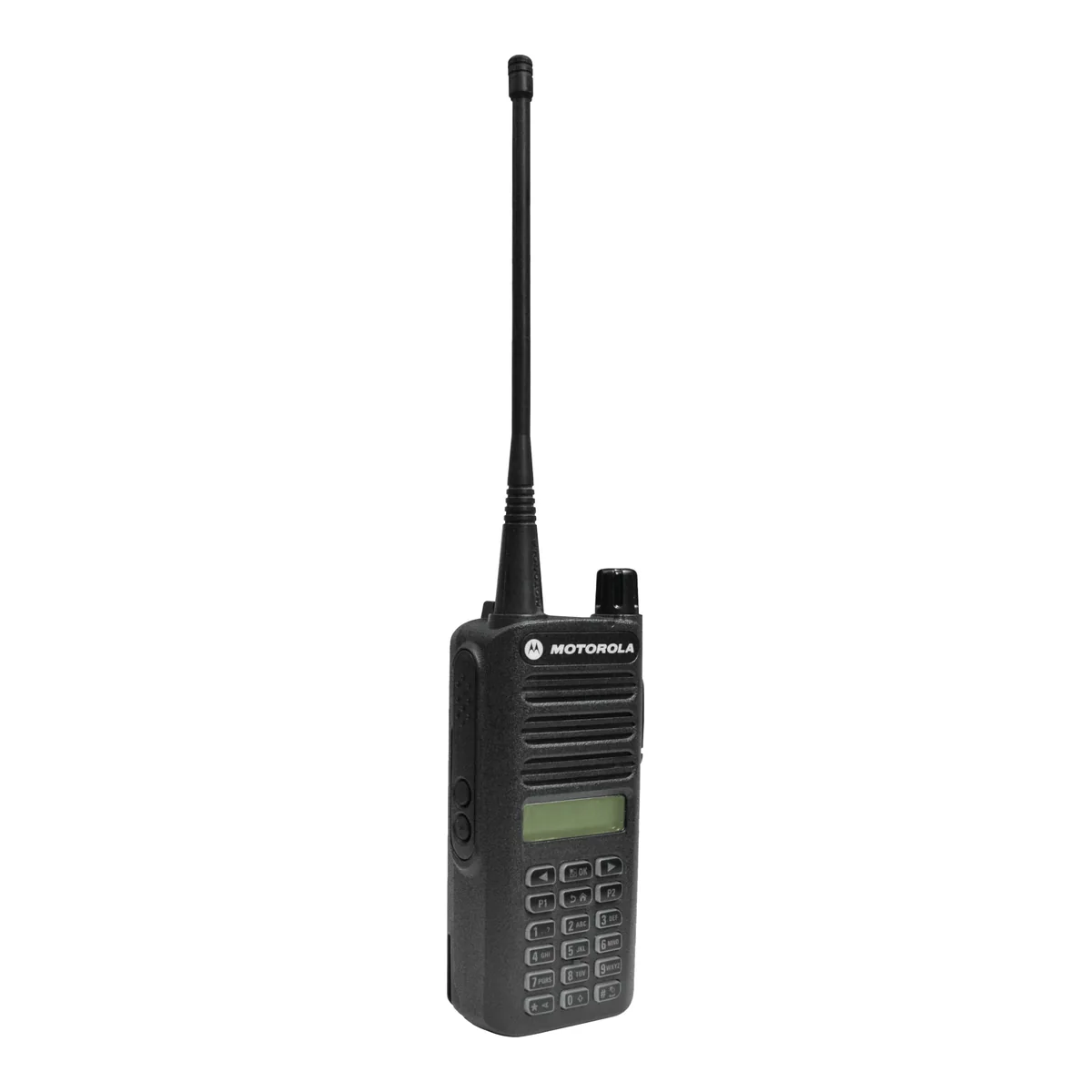

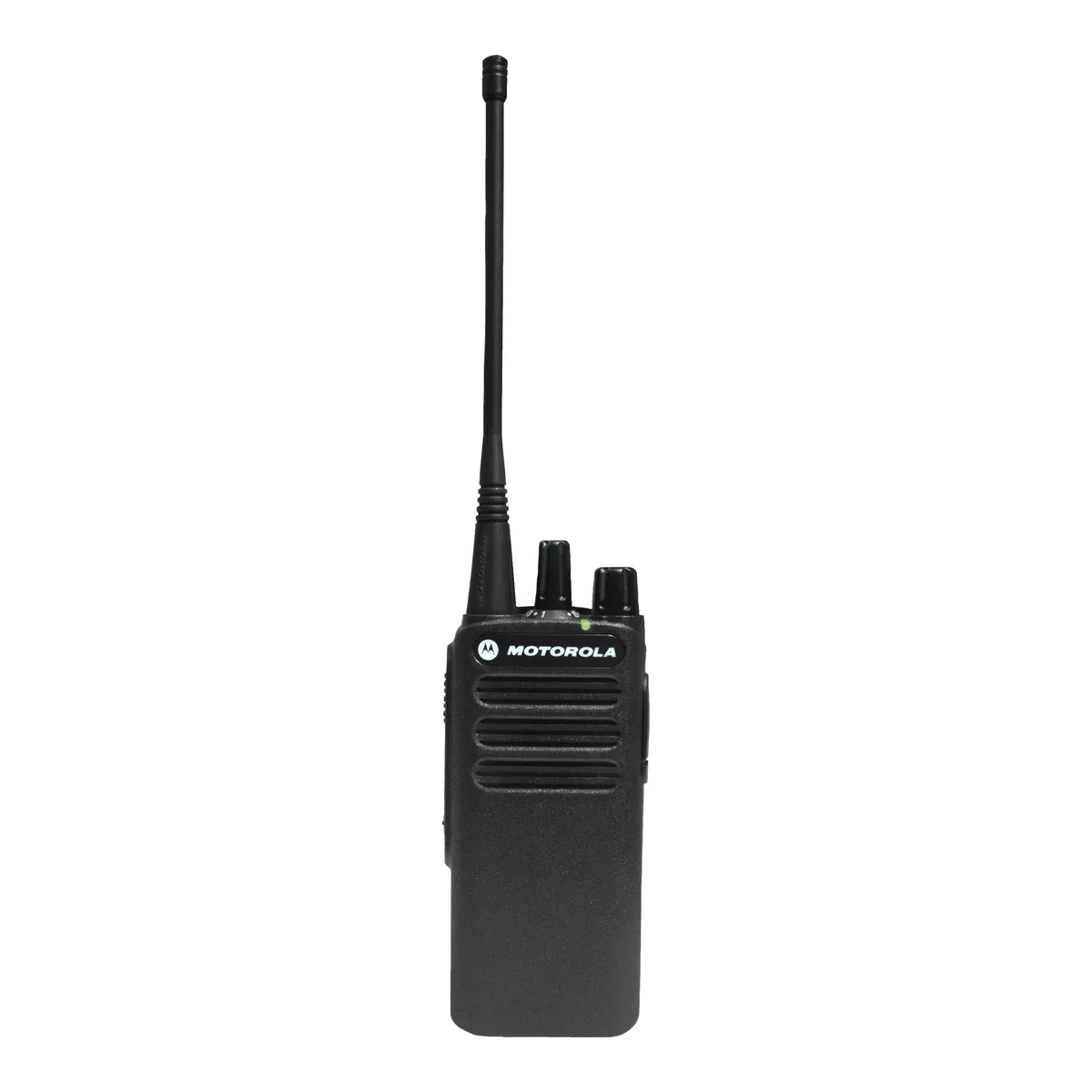

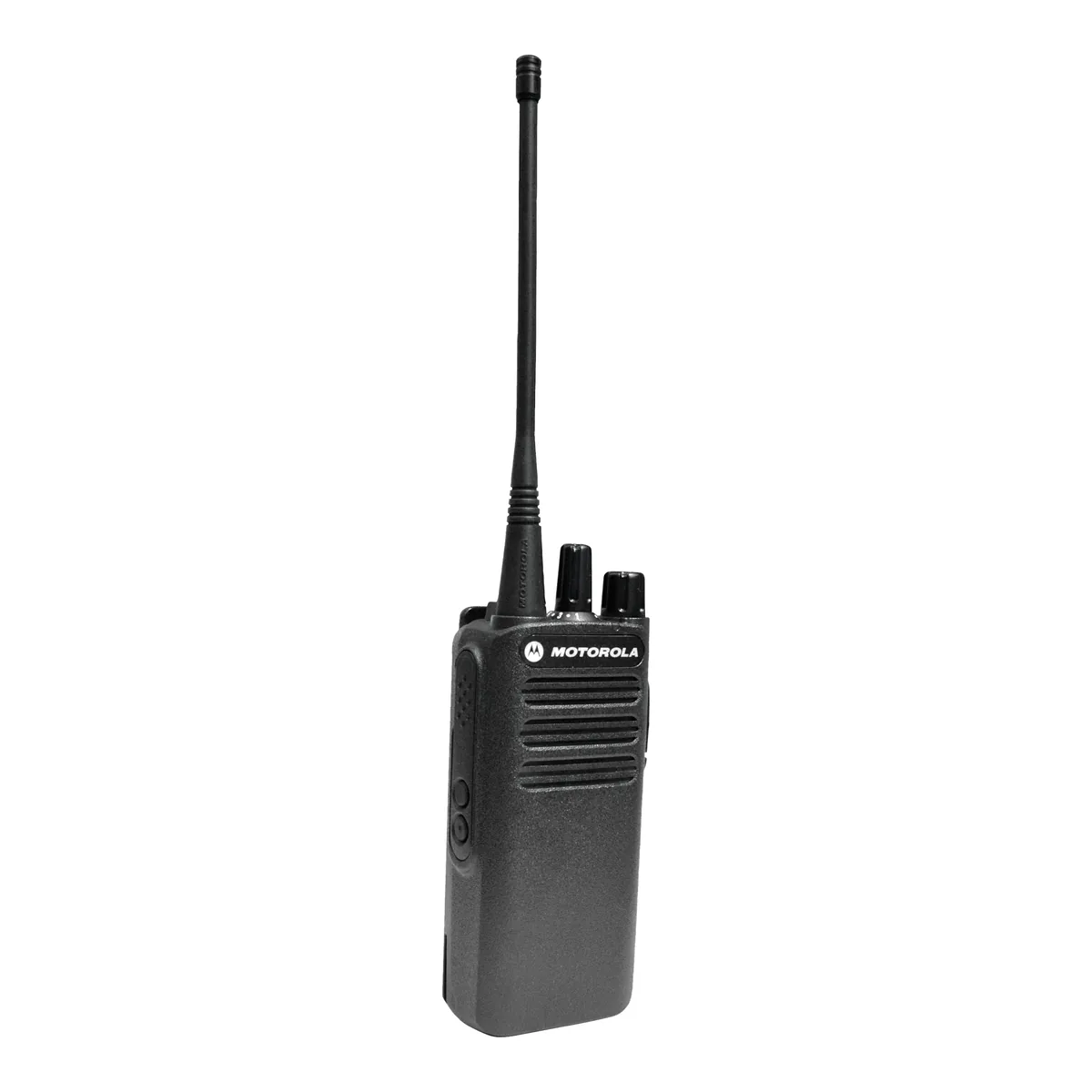

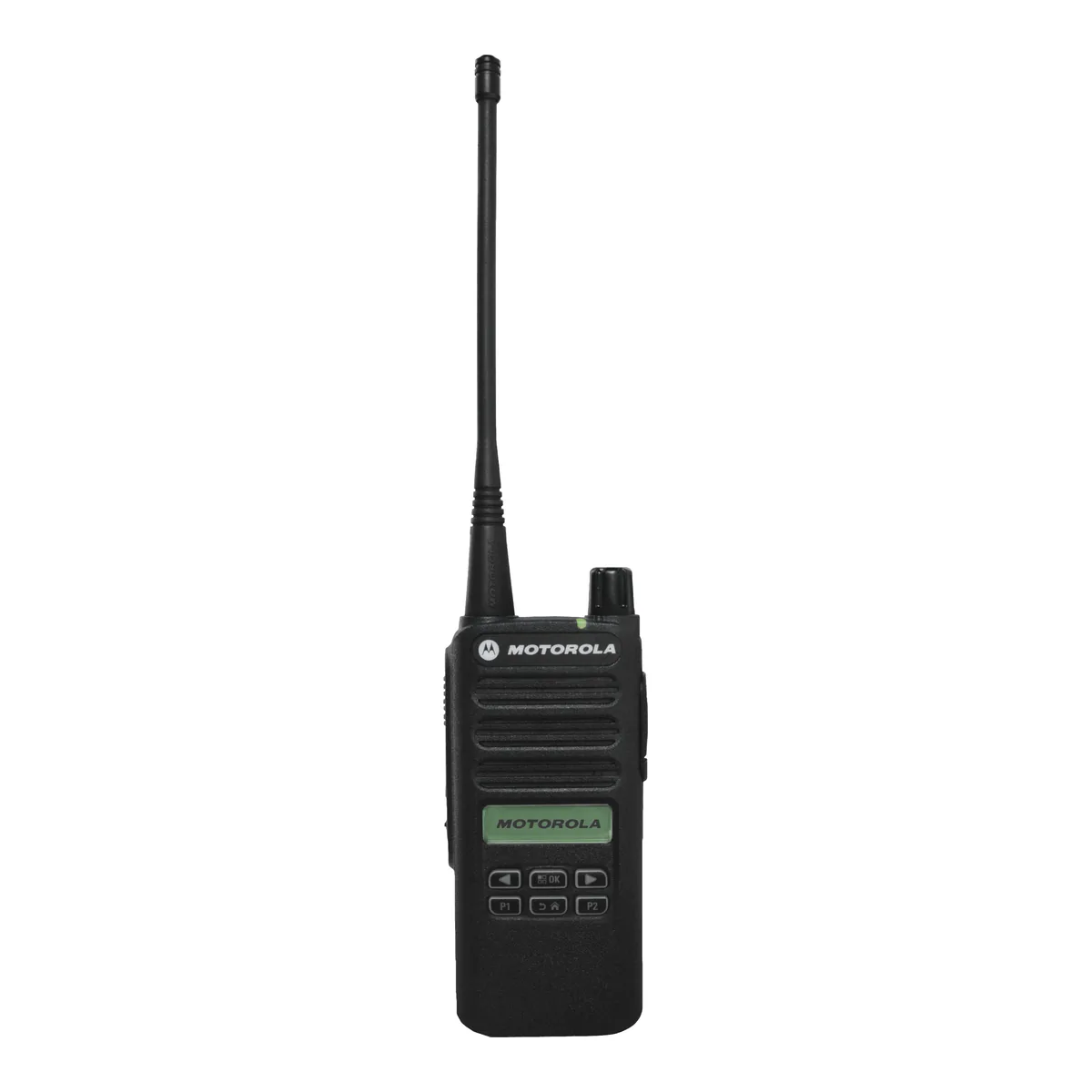

- Three versions: non-display (16 channels), limited keypad with display (160 channels) and full keypad with display (160 channels)
- Analog and digital (DMR); an analog-only version can be upgraded to digital later with software
- Twice the talk paths on one licensed 12.5 kHz channel in digital mode
- Dual Capacity Direct Mode: two simultaneous radio-to-radio conversations on one frequency, no repeater needed
- 5 W VHF / 4 W UHF transmit power
- Up to 20 hours (digital) on the high-capacity battery
- Clear digital audio that rejects static and background noise
- Pre-programmed text messages, voice announcement and transmit interrupt (decode)
- Full keypad model can send DTMF codes to control gates, doors and irrigation systems
- IP54 dust and water resistance; MIL-STD-810 C through G tested and put through Motorola’s Accelerated Life Test
Some MOTOTRBO features are optional software licenses, including the analog-to-digital upgrade. We program each radio for your team and include the right options in your quote.
Models
| Model | Display / keypad | Channels | VHF (136–174 MHz) | UHF (403–480 MHz) |
|---|---|---|---|---|
| CP100d non-display | None | 16 | 5 W / 1 W | 4 W / 1 W |
| CP100d limited keypad | Display, limited keypad | 160 | 5 W / 1 W | 4 W / 1 W |
| CP100d full keypad | Display, full keypad | 160 | 5 W / 1 W | 4 W / 1 W |
Specifications
| Specification | MOTOTRBO CP100d |
|---|---|
| Channels | 16 (non-display) or 160 (display models) |
| Modes | Analog and digital DMR (analog-only version upgradable) |
| Audio output | 0.5 W rated (internal speaker) |
| Battery life (analog / digital) | 1700 mAh: 10.7 / 14.4 h; high-capacity 2250 mAh: 15 / 20 h |
| Size (H x W x D) | 4.7 x 2.2 x 1.4 in (1.6 in with high-capacity battery) |
| Weight | 9.7–10.6 oz with battery |
| Operating temperature | -22 °F to +140 °F (radio) |
| Environmental | IP54, MIL-STD-810 C/D/E/F/G |
Good to know
Which version do I need?
Non-display is simplest: great for front desk, housekeeping, wait staff, valet and cart attendants. The limited keypad model adds a display and 160 channels for supervisors, managers and anyone who switches channels often. The full keypad model is for maintenance, grounds and security teams who need to enter codes or control equipment. Many customers mix models on the same system.
Will it work with my analog radios?
Yes. The CP100d runs analog and digital, so it talks with the analog radios you already have while you move to digital at your own pace.
Can I buy analog now and go digital later?
Yes. An analog-only version is available and can be upgraded to digital with a software license when you are ready.
Do I need a repeater to get two channels?
Not for radio-to-radio use. Dual Capacity Direct Mode lets two separate conversations share one licensed frequency without a repeater. With a repeater, digital mode also gives you two talk paths on one frequency.
Can the radio open gates or start irrigation?
The full keypad model can send DTMF codes, which many gate, door and irrigation controllers accept. Tell us what equipment you have and we will confirm it will work.
How long does the battery last?
Up to 14.4 hours in digital with the standard battery, and up to 20 hours with the high-capacity battery.
Do I need a license?
Business radios like the CP100d use FCC-licensed frequencies. We can program the radios for the license you already have, or talk you through getting one.
Downloads
- MOTOTRBO CP100d spec sheet (PDF)
- CP100d for golf course operations (PDF brochure)
