Overview

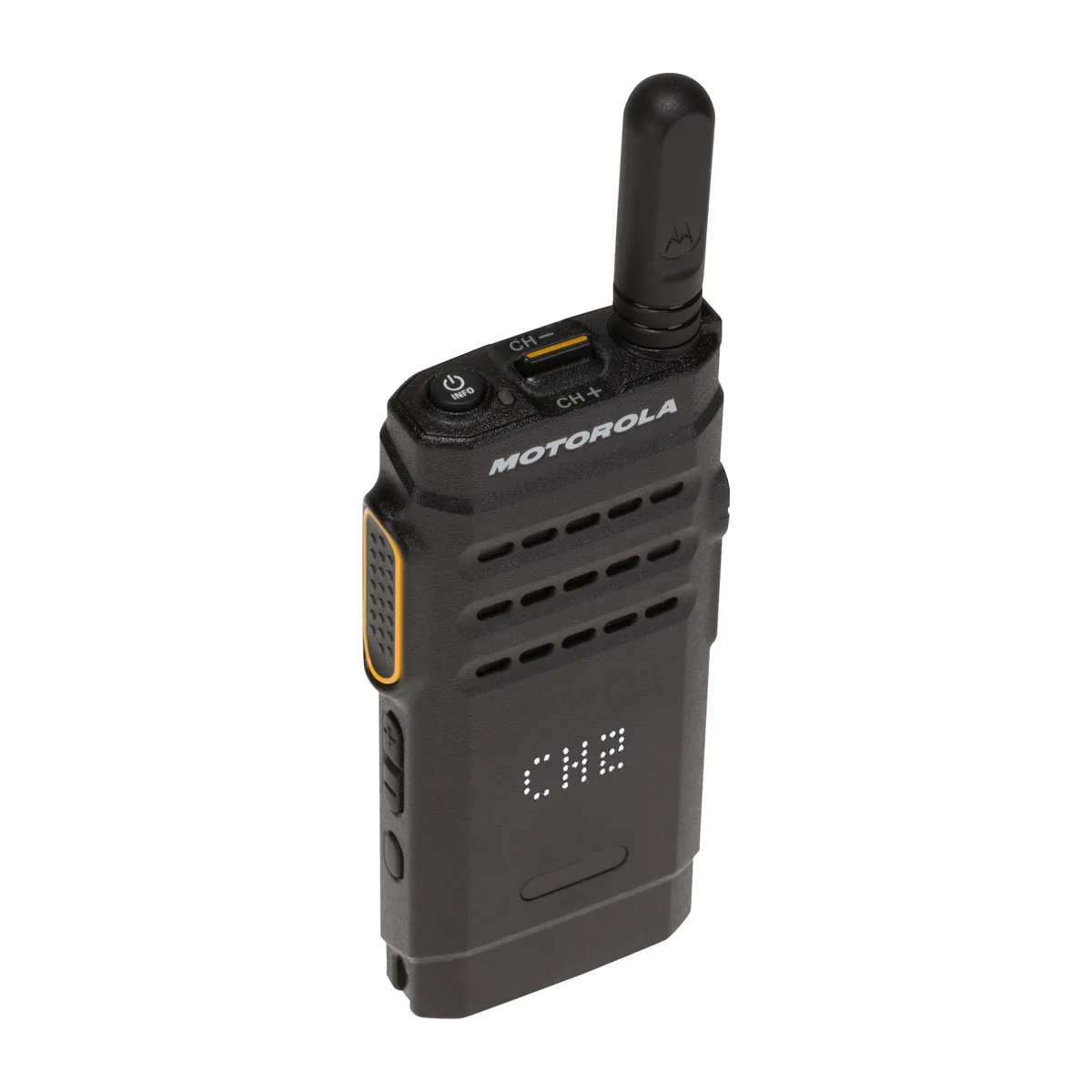

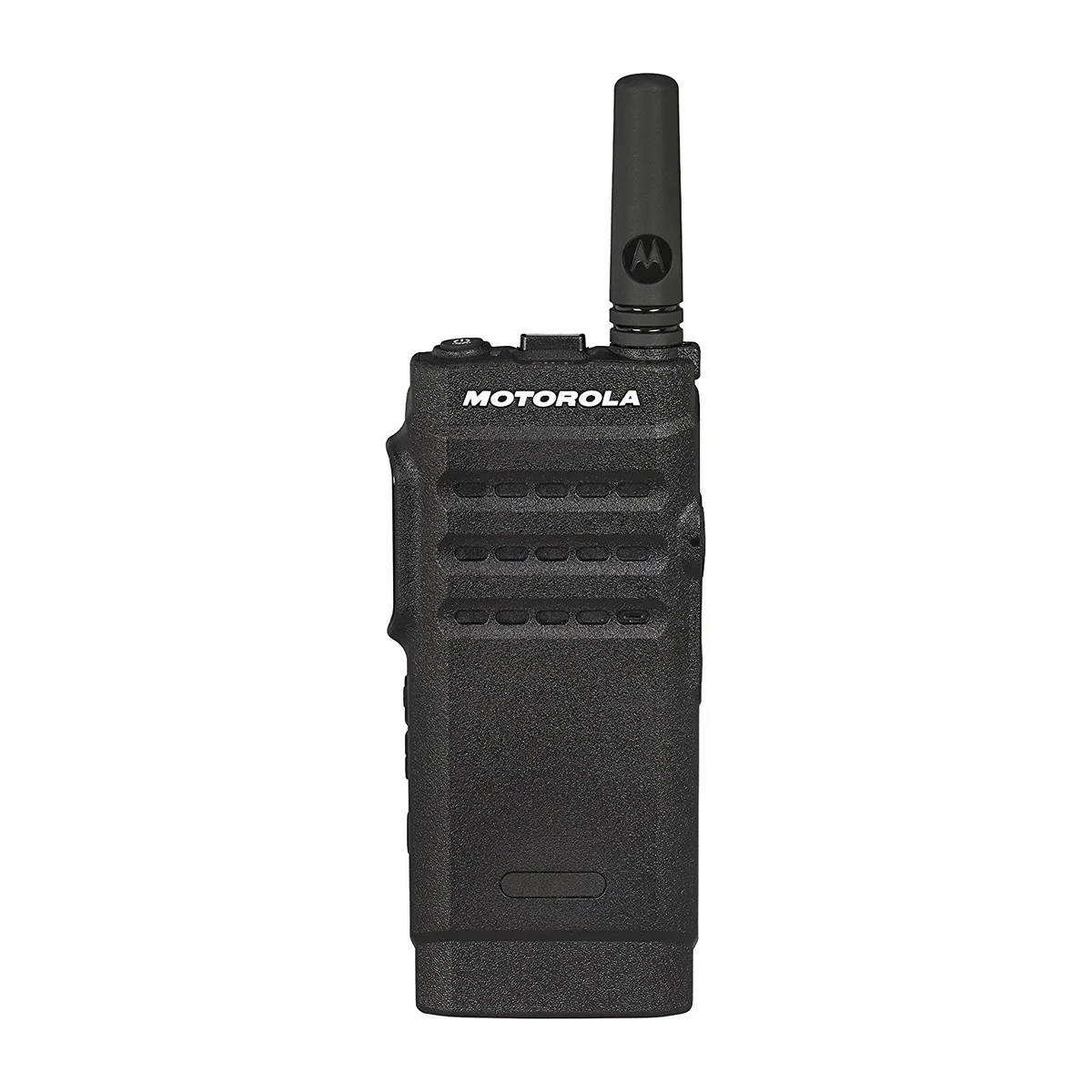

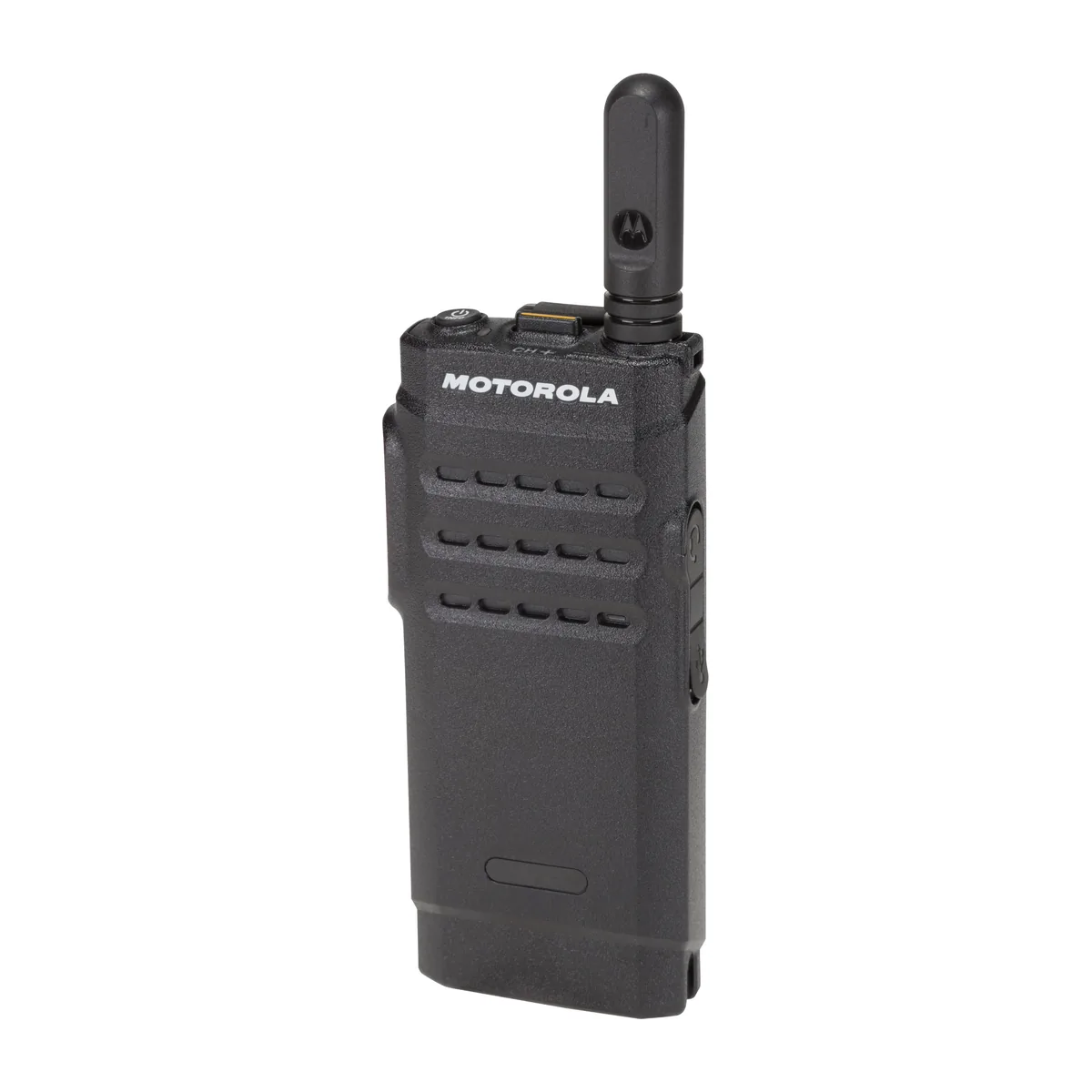

The MOTOTRBO™ SL300 is Motorola Solutions’ ultra-slim business radio: under an inch thick and about 6 ounces, so it rides in a shirt pocket, apron or purse without bulging. Push-to-talk is big and easy to find, and it comes in two versions: a simple 2-channel model, or a 99-channel model whose hidden Active View LED display shows the channel right through the housing. Every SL300 is both digital and analog, so it can join the radios you already have.
Key features
- Ultra-slim: 0.87 in thick, about 6 oz with battery
- Two versions: 2-channel, or 99-channel with the Active View LED display
- Active View display shows channel and status through the housing; on the 99-channel model the top toggle can jump 10 channels at a time
- Digital (DMR) and analog in the same radio
- 3 W digital with Range Max, which Motorola rates as equivalent to most 4 W digital radios
- Up to 14–15 hours (digital) on the 2300 mAh lithium-ion battery
- IP54 dust and splash resistance; MIL-STD-810 tested and put through Motorola’s Accelerated Life Test
- Works on single-site Capacity Plus systems as well as conventional repeaters and radio-to-radio
- Transmit interrupt, so a priority call can cut in when it matters

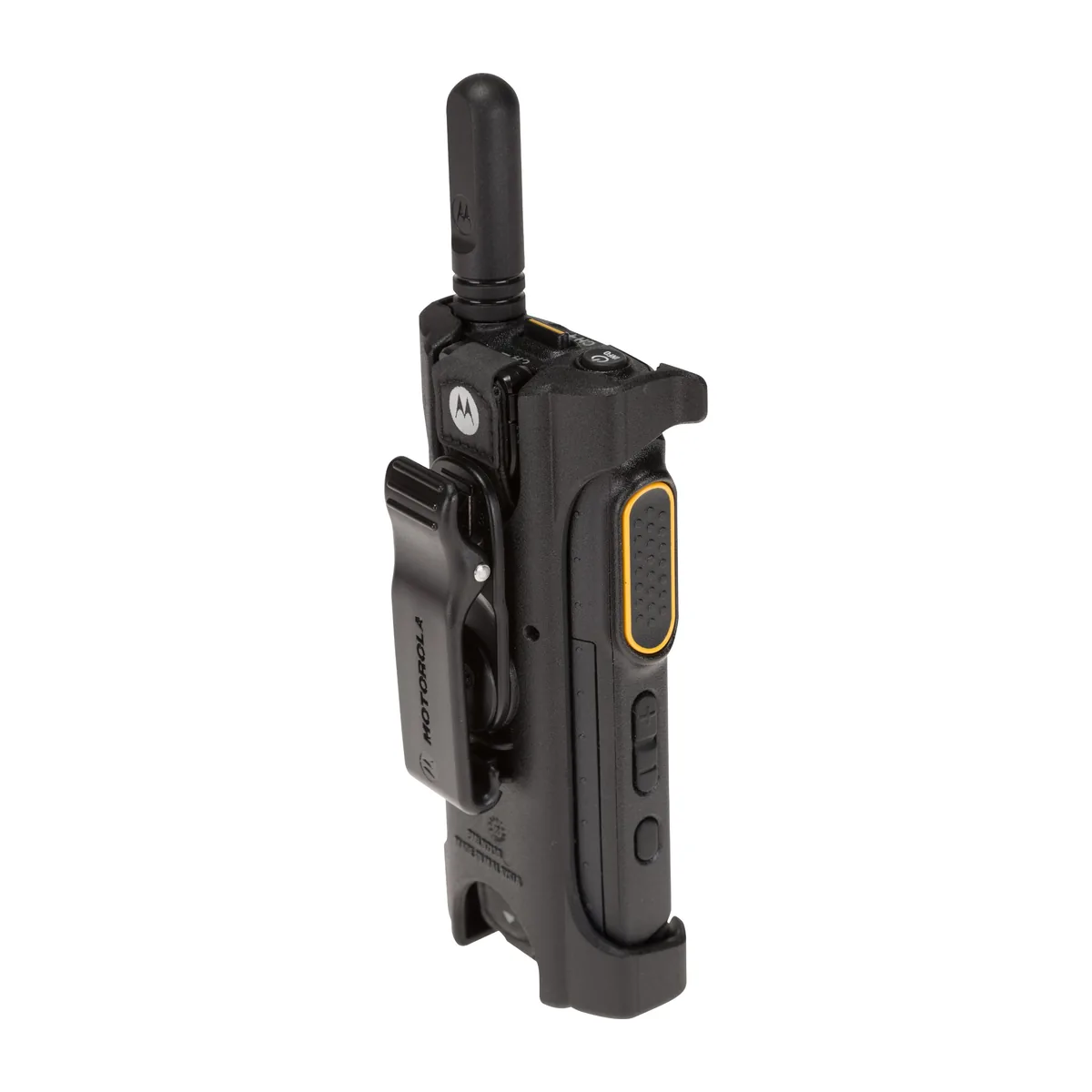

- Discreet earpieces, a swivel holster and a heavy-duty belt clip are available
Some MOTOTRBO features are optional software licenses. We program each radio for your team and include the right options in your quote.
Models
| Model | Channels | Frequency range | Power |
|---|---|---|---|
| SL300 2-channel VHF | 2 | 136–174 MHz | 3 W digital / 2 W analog / 1 W low |
| SL300 2-channel UHF | 2 | 403–470 MHz | 3 W digital / 2 W analog / 1 W low |
| SL300 99-channel VHF (display) | 99 | 136–174 MHz | 3 W digital / 2 W analog / 1 W low |
| SL300 99-channel UHF (display) | 99 | 403–470 MHz | 3 W digital / 2 W analog / 1 W low |
Specifications
| Specification | MOTOTRBO SL300 |
|---|---|
| Channels | 2 (non-display) or 99 (display) |
| Modes | Digital DMR and analog |
| Display | Active View LED on the 99-channel model (shows through the housing) |
| Audio output | 0.5 W rated (internal speaker) |
| Battery life (analog / digital) | 2-channel: 12.5 / 15 h; 99-channel: 11.8 / 14 h (2300 mAh Li-ion, PMNN4468) |
| Size (H x W x D) | 4.95 x 2.17 x 0.87 in |
| Weight | 5.8–6.0 oz with battery |
| Operating temperature | -22 °F to +140 °F (radio) |
| Environmental | IP54, MIL-STD-810 C/D/E/F/G |
Good to know
Which version do I need, 2-channel or 99-channel?
The 2-channel model is ideal when everyone stays on one or two talk groups, such as a school, store or event staff. Choose the 99-channel display model if your team switches between many channels or departments; the LED display shows which channel you are on. Not sure? Tell us how your team works and we will recommend one.
Is it really pocket-sized?
Yes. It is under an inch thick with a short stubby antenna and rounded edges, so it carries in a pocket without snagging. A swivel holster and belt clip are available if you would rather wear it.
Does the SL300 have a screen or Bluetooth?
The 99-channel model has an Active View LED display that shows channel numbers and status through the front of the radio; the 2-channel model has none. Neither has a keypad or menu screen, and no Bluetooth. If you need Bluetooth, ask us about the SL3500e.
Will it talk to my older analog radios?
Yes. The SL300 runs digital and analog, so it can work alongside the analog radios you already have while you move to digital.
Will it work on a repeater or trunking system?
Yes for radio-to-radio, conventional repeaters and single-site Capacity Plus systems. For larger multi-site systems, ask us which MOTOTRBO model fits.
How do I charge it?
It charges from a micro-USB single-unit charger, and there is a six-pocket multi-unit charger for teams. Battery life is about 14 to 15 hours in digital use.
Is it waterproof?
It is IP54 rated, which means protected from dust and splashing water such as rain. It is not made to be submerged.
